FUME JET

Introduction

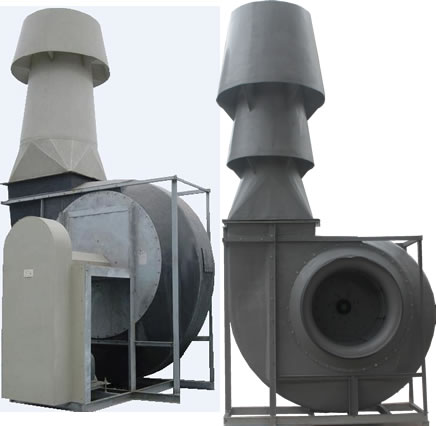

The Fume Jet is built to a true volute form, and is tested in accordance to AMCA 260 and AMCA 311. The Fume Jet nozzles come in 18 difference sizes. CHEMCO Fume Jet is a vertical taper nozzle mounted on the fan outlet for dispersion of fumes to the atmosphere to prevent the contamination from settling and plugging. The Fume Jet casing is extremely rigid to ensure that it is free of vibration or drumming during operation. It is developed to give low noise level and trouble-free service. Material of PP, PE, PVC, PVDF, GRP, and epoxy coated steel or stainless steels for superior corrosion resistance quality. The Fume Jet nozzle is designed to provide adequate exit velocities that will help prevent plume downwash.

Application

• The Fume jets are used to extract laboratory, process, or fume hood corrosive air and dilute the effluent with outside ambient air

Operating Range

• Maximum Air handling Capacity: 90,000CMH

• Maximum Static Pressure: 2200 Pa

• Maximum Temperature: 100˚C

Options

• Spark resistant construction

Feature

• The unique nozzle design induce ambient air up to 270% of fan capacity

• Designed to efficiently handle outlet velocity up to 7200 FPM
