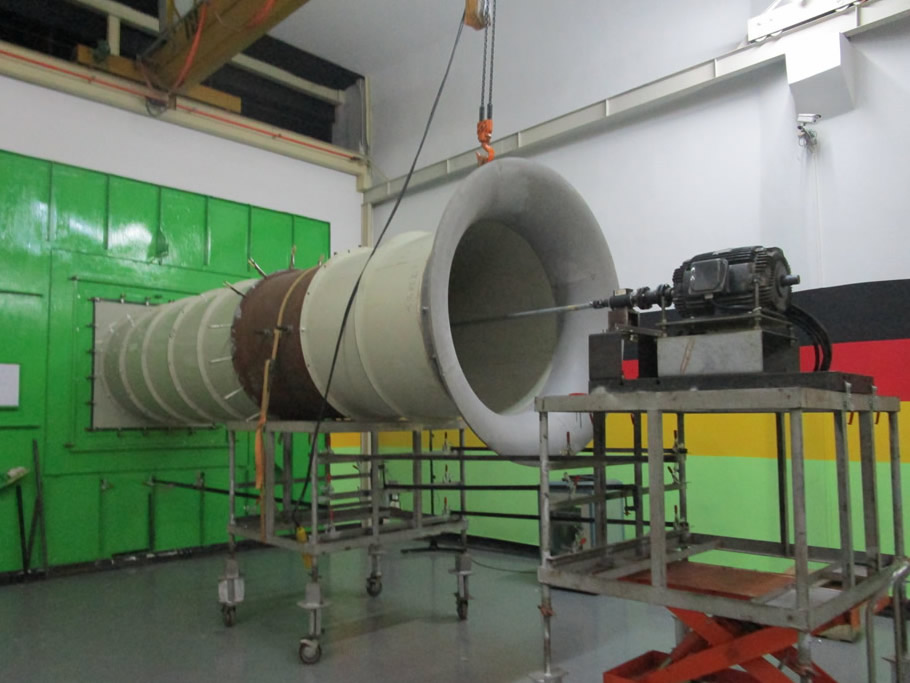

| Chamber Type |
Multiple Nozzles in Chamber |
| Governing Standard |
AMCA 210 / ANSI / ASHRAE 51
Figure 12 - Outlet Chamber Setup
Figure 15 - Inlet Chamber Setup |
| Configuration |
4100 mm by 4700 mm |
| Airflow Rate |
650 m3/h to 140 000 m3/h |
| Maximum Pressure |
2500 Pa |
| Max Outlet Area of Test Fan |
2.141 m2 [Centrifugal Fan]
1.204 m2 [Axial or In-Line Fan] |
